Nexans Pigtail SM12701 — Single-Mode Tight-Buffer Fibre Pigtail Dubai with Installation
AED100 Login for member discount (10%)
- Single-mode tight-buffer fibre pigtail by Nexans (SM12701 series)
- Pre-terminated connector on one end, ready for splicing
- Low insertion loss (~0.5 dB) and precise performance
- Compact ~0.9 mm outer diameter, indoor-rated up to +70 °C
- Ideal for high-density fibre panels in Dubai; Netfix supplies & installs across UAE
Out of stock

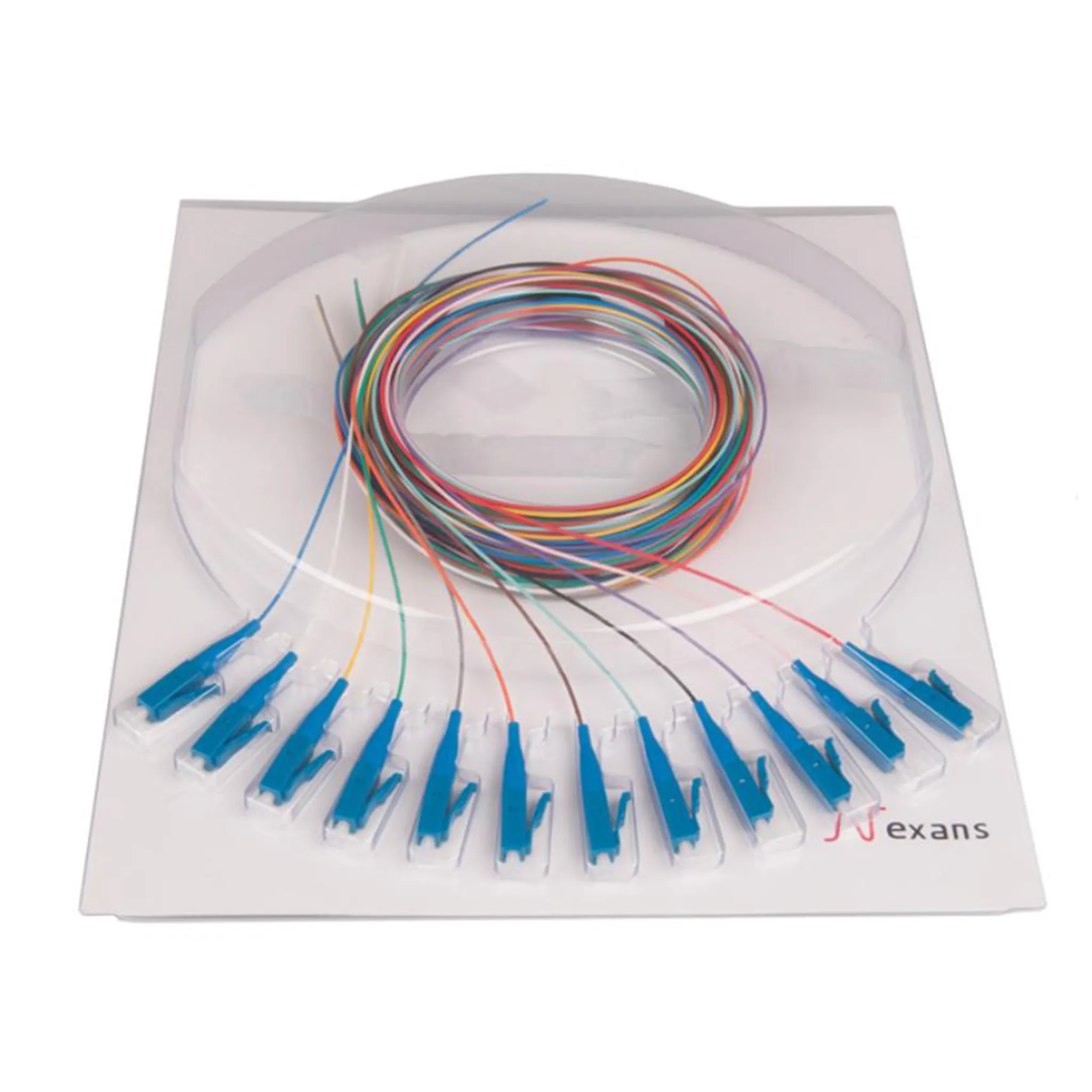

Nexans Pigtail SM12701 — Single-Mode Tight-Buffer Fibre Pigtail
The Nexans Pigtail SM12701 is a high-quality single-mode fibre-optic pigtail designed for seamless splicing and termination in data-centres, telecom rooms and backbone racks across Dubai, Sharjah and the wider GCC region. With a pre-terminated connector on one end and tight-buffer construction, it simplifies fibre transitions and ensures high performance in professional fibre-optic deployments. Netfix supplies genuine Nexans pigtails and provides full installation, labelling and testing across the UAE.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Tight-buffer SM fibre (G.652D / G.657.A1 depending variant) | Easy to splice, suitable for rack-mount termination units and patch-panels in UAE installations. |
| Pre-connected on one end (connector type varies: LC, SC, LC/APC, SC/APC) | Minimises labour and errors in high-density fibre termination jobs common in Dubai and Gulf region data-closets. |
| Low insertion loss (max ~ 0.5 dB) | Assures minimal signal loss for critical single-mode links between buildings or floors. |
| Tight buffer diameter ~0.9 mm, flame-retardant halogen-free sheath | Compact footprint, suited for tray-routing, and meets fire-safety requirements in UAE commercial buildings. |
| Indoor-rated, operating temperature –40 °C to +70 °C | Reliable performance in air-conditioned telecom rooms and moderate UAE riser shafts. |
Technical Specifications
- Model: Nexans Pigtail SM12701 series (single-mode fibre)
- Fibre type: Single-Mode (SM) – G.652D or G.657.A1 depending variant
- Connector type: LC/UPC, LC/APC, SC/UPC, SC/APC, MU/UPC (varies by SKU)
- Length: typically 1.5 m (or 2.0 m depending SKU)
- Tight-buffer outer diameter: ~0.9 mm
- Maximum insertion loss: ~0.5 dB at 1550 nm Colour: Blue (for G.652D), Yellow (for G.657.A1) depending variant
- Operating temperature: -40 °C to +70 °C
- Use environment: Indoor telecom rooms, splice trays, outlet boxes
Why Choose It in Dubai & GCC
- Pre-terminated single-mode pigtails minimise installation time in high-rise UAE data centres and campus deployments.
- Tight-buffer design is space-efficient and ideal for dense fibre panels in Dubai telecom risers.
- High-quality Nexans manufacture ensures longevity and compatibility with global fibre-optic standards used in the Gulf region.
- Supplied and installed by Netfix, with full testing, labelling and commissioning for your Dubai, Sharjah or Abu Dhabi site.
Netfix supplies the Nexans Pigtail SM12701 across the UAE and GCC, with professional installation, labelling and testing. For project quotes or site survey in Dubai or Sharjah, please visit Netfix.
