HPE Instant On AP22 (R4W02A) — 2×2 Wi-Fi 6 Indoor Access Point Dubai with Installation
AED100 Login for member discount (10%)
- Dual-band Wi-Fi 6 (802.11ax) 2×2 MIMO, up to 1.2 Gbps + 574 Mbps
- 802.3af PoE-in or 12 V DC input supported
- Smart Mesh for extending coverage without wiring
- Supports up to 75 clients per radio
- WPA2/WPA3, TPM, 2FA, secure guest networks
- Managed by Aruba Instant On app or cloud portal—no controller or license required
- Compact 160×160×37 mm, ~500 g, ~10.1 W max power
Out of stock

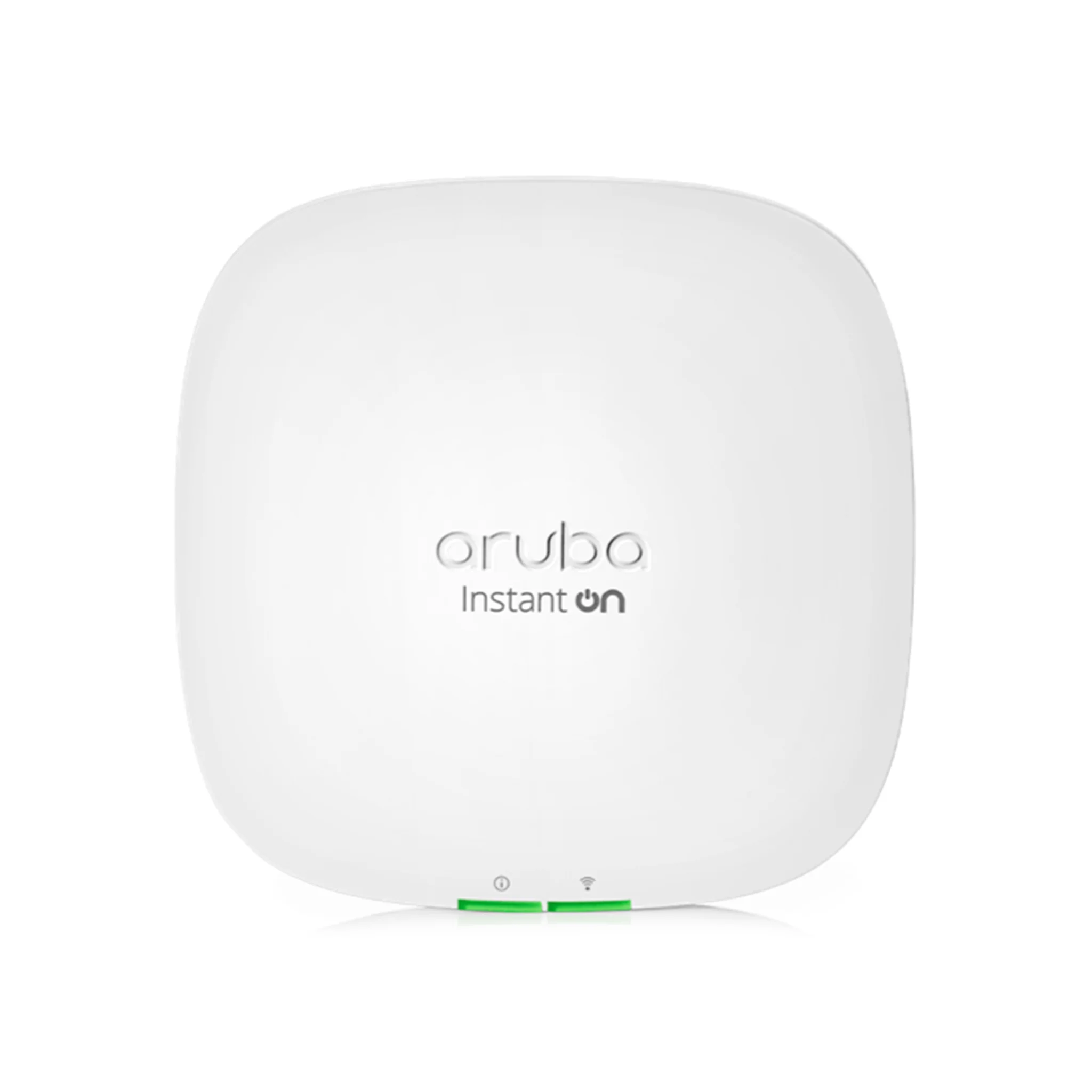

HPE Instant On AP22 (R4W02A) — 2×2 Wi-Fi 6 Indoor Access Point
The HPE Instant On AP22 (model R4W02A) is a Wi-Fi 6 (802.11ax) 2×2 indoor access point engineered for small to medium business environments across the UAE and GCC. With support for up to 75 devices per radio, built-in mesh capability, and app/cloud management, the AP22 delivers reliable, high-performance wireless connectivity for offices, retail sites, villas, and mixed-use developments in Dubai, Sharjah, Abu Dhabi, and beyond.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Wi-Fi 6, 2×2 MIMO (dual-band) | Higher throughput, lower latency, and better handling of dense client environments |
| Up to 1.2 Gbps (5 GHz) + 574 Mbps (2.4 GHz) | Supports simultaneous streaming, cloud services, and client traffic without bottlenecks |
| 802.3af PoE (class 3) or 12 V DC input | Flexible deployment—power over Ethernet simplifies installation |
| Smart Mesh Wi-Fi support | Extend coverage wirelessly to hard-to-wire areas without extra wiring |
| OFDMA, MU-MIMO, TWT (Target Wake Time) | Improved spectrum efficiency and longer battery life for IoT devices |
| WPA2/WPA3, Enhanced Open, 2FA, TPM | Strong security built in, guest isolation, and protection against credential breaches |
| Integrated router/gateway/firewall functionality | Operates standalone if network gateway is not present |
| Cloud + App management (no controller needed) | Simplifies deployment and remote maintenance across multiple sites |
| Compact form factor (160 × 160 × 37 mm) | Discrete wall or ceiling mounting in UAE interiors |
| 2-year warranty + support | Peace of mind with regional service and warranty backup |
Technical Specifications
- Standards: IEEE 802.11ax (Wi-Fi 6), backward-compatible with b/g/n/ac
- Radio configuration: Dual-band, 2×2 MIMO
- Maximum PHY rate: 5 GHz up to 1.2 Gbps; 2.4 GHz up to 574 Mbps
- Transmit power (conducted): up to +21 dBm on both bands (subject to region/regulation)
- Ethernet interface: 1 × Gigabit RJ-45, supports PoE-in (802.3af Class 3)
- DC input: 12 V (optional)
- Power consumption: ~10.1 W (PoE) / 8.8 W (DC) worst-case
- Antenna: Integrated, down-tilt omni-directional (gain ~4.3 dBi @ 2.4 GHz, ~5.6 dBi @ 5 GHz)
- Clients per radio: up to 75 devices per radio (150 total)
- Mesh: Yes, supports Smart Mesh for wireless extension
- Security: WPA2, WPA3, Enhanced Open, 2FA, TPM, guest isolation, app-based control
- Management: Aruba Instant On mobile app, cloud portal, local GUI
- Operating temperature: 0 °C to +40 °C
- Dimensions / Weight: 160 × 160 × 37 mm, ~500 g
Why Choose It in Dubai & GCC
- Wi-Fi 6 features (OFDMA, MU-MIMO, TWT) boost performance in dense UAE environments with many devices per site
- Integrated mesh lets you extend coverage inside villas, shops, or mezzanines without extra cabling
- PoE support simplifies deployment—only one cable needed from ceiling/false ceiling in UAE interiors
- No extra controller or license needed—ideal for multi-branch or small offices across GCC
- Robust security (WPA3, TPM, 2FA) is aligned with compliance and enterprise standards in UAE business sectors
- Compact, aesthetic design fits well in modern offices, lounges, and hospitality interiors in Dubai projects
Netfix supplies the HPE Instant On AP22 (R4W02A) across UAE and GCC with full professional deployment, network integration, configuration, and warranty support. Contact Netfix for pricing and installation in Dubai, Sharjah, or Abu Dhabi.
