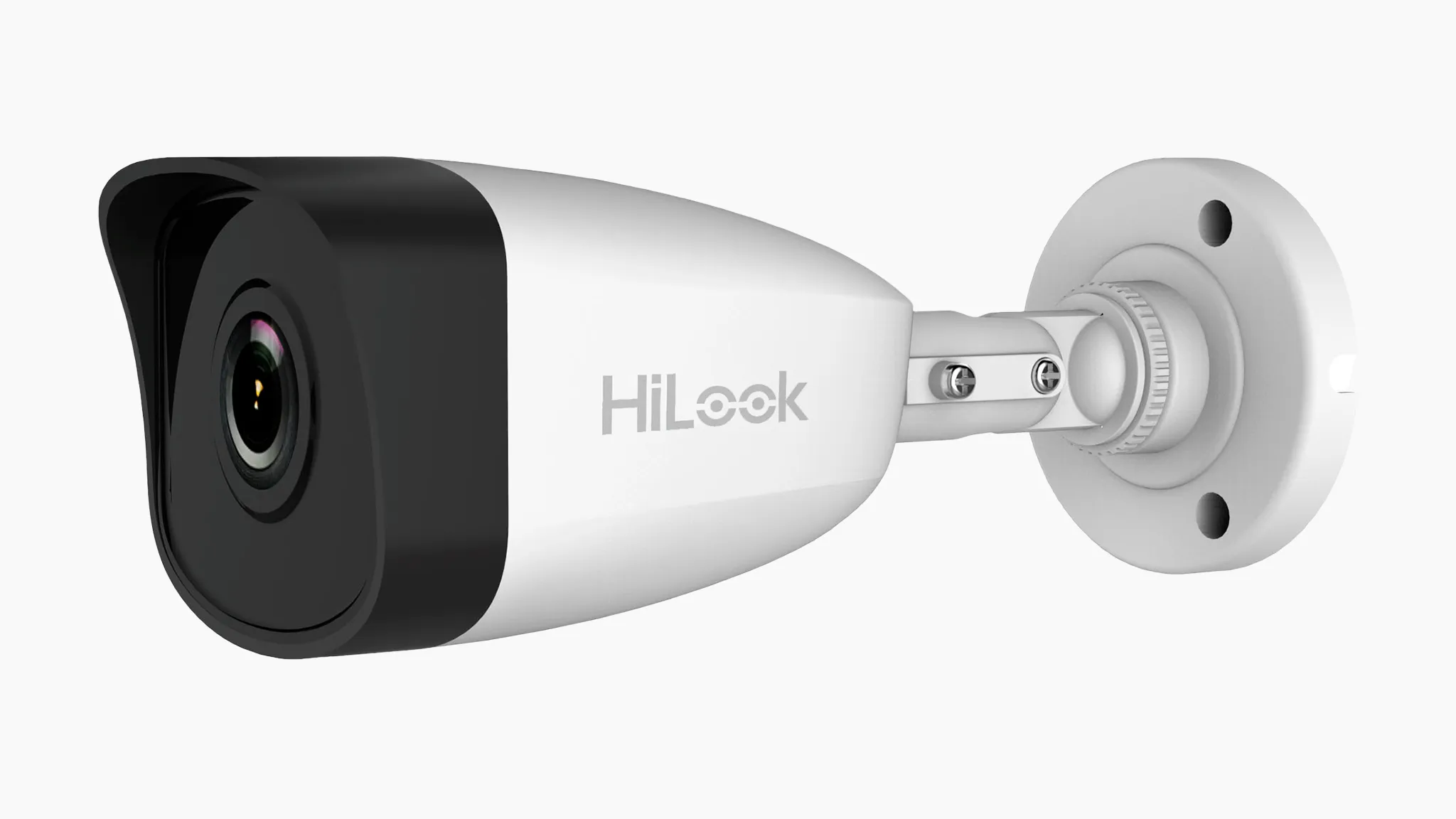

HiLook IPC-B140H(-M) — 4MP IR Fixed Bullet Network Camera

The HiLook IPC-B140H (and variant -M) is a 4 MP fixed bullet network camera designed for robust outdoor surveillance across UAE & GCC regions. With 120 dB WDR, efficient H.265+ compression, and IP67 durability, it suits entrances, façades, driveways, and perimeter zones in Dubai, Sharjah, Abu Dhabi, and beyond. Netfix offers genuine units plus professional installation across UAE.

Key Features & Benefits

Technical Specifications

• Image Sensor: 1/3″ progressive scan CMOS
• Maximum Resolution: 2560 × 1440 (4 MP)
• Minimum Illumination: 0.01 Lux (colour, F2.0, AGC ON); 0 Lux in B/W with IR
• Lens: Fixed focal lens, options 2.8 mm or 4 mm; aperture F2.0
• Field of View:
  – 2.8 mm: ~98.0° H × 53.1° V × diagonal ~114.7°
  – 4 mm: ~78.7° H × 43.1° V
• Illumination: IR 850 nm, up to 30 m, with smart supplement IR control
• Video Compression: H.265+, H.265, H.264+, H.264; sub-stream support for MJPEG Frame Rates (Main Stream): 50 Hz: 20 fps @ 4 MP; 25 fps @ 1080p/720p; 60 Hz: 20 fps @ 4 MP; 30 fps @ 1080p/720p
• Network Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, NTP, SSL/TLS, IPv4 / IPv6, etc.
• Power: 12 V DC ±25% (~0.4 A, max 5 W) or PoE (802.3af, Class 3, max ~6.5 W)
• Dimensions: 181.6 mm × 71.4 mm × 66.7 mm
• Weight: Approx. 270 g
• Operating Temp/Humidity: –30 °C to +60 °C, ≤95% non-condensing
• Protection: IP67 rated (dust & water resistant)
• Image Enhancements: 120 dB WDR, BLC, 3D DNR, mirror, region of interest, watermark, privacy mask

Why Choose It in Dubai & GCC

• 4 MP resolution ensures clarity for security footage in UAE environments
• Strong WDR handles contrast from sunlight, shadows and reflections
• IR illumination up to 30 m supports night monitoring where street lighting is low
• PoE support simplifies cable runs in tall or multi-storey buildings
• IP67 durability ensures performance under UAE’s sand, dust, heat and humidity
• ONVIF / API compatibility fits with NVR/VMS systems used locally

Netfix supplies the genuine HiLook IPC-B140H(-M) across UAE and GCC, with warranty, calibration, and professional installation services in Dubai, Sharjah and other Emirates. Contact Netfix for your site survey and quote.
