Hikvision DS-K7P02 — Compact Exit Button Dubai with Installation
AED100 Login for member discount (10%)
- Compact push-to-exit button 90×35×28.9 mm aluminium panel
- Rated up to 3 A @ 36 VDC with NO/NC/COM contacts
- Suitable for hollow door-frames and embedded boxes
- Durable metal button with 500 ,000+ actuator test life
- Works reliably in UAE conditions (-10 °C to +55 °C, humidity 0–95%)
- Ideal for villas, offices, retail doorways across Dubai & GCC
Out of stock

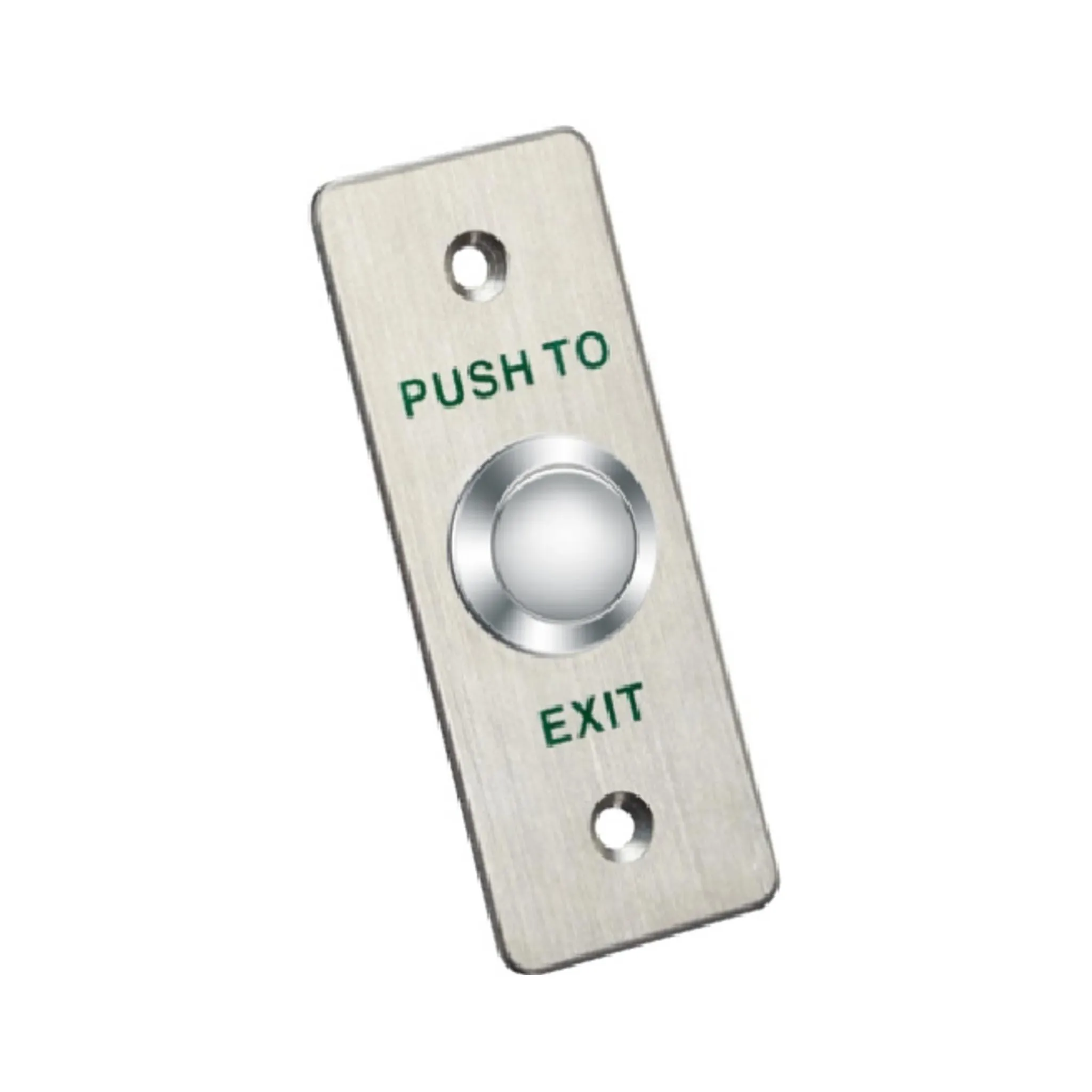

Hikvision DS-K7P02 — Compact Exit Button (NO/NC/COM) for Access Control
The Hikvision DS-K7P02 is a robust and compact exit/push-to-exit button designed for access-control systems in doors requiring reliable manual egress control across the UAE, Dubai, Sharjah and the Gulf region. Featuring a sand-blasted aluminium alloy panel, metal button, NO/NC/COM contact outputs and a maximum rating of 3 A at 36 VDC, this accessory is ideal for villas, offices, retail sites and commercial buildings. Netfix supplies the genuine Hikvision hardware and offers professional installation throughout the UAE.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Aluminium alloy panel with sand-blast finish, metal button | Durable finish and professional look for UAE interiors |
| Output contacts: NO / NC / COM | Flexible integration with various access-control and alarm systems |
| Rated for 3 A at 36 VDC max | Suitable for typical doors, locks and control panels used across GCC sites |
| Compact dimensions: 90×35×28.9 mm | Fits narrow frames and embedded boxes common in Gulf region installations |
| Working temperature –10 °C to +55 °C & up to 95% humidity | Reliable operation in UAE’s hot and occasionally humid conditions |
| Designed for hollow door-frames & embedded electric boxes | Suits retrofit installations in older UAE properties and modern smart villas |
Technical Specifications
- Model: DS-K7P02 — Exit/Push-to-Exit Button accessory for access control systems.
- Power rating: Maximum 36 VDC, 3 A current rating.
- Dimensions: 90 mm × 35 mm × 28.9 mm (3.54″ × 1.38″ × 1.14″).
- Material: Aluminium alloy panel (sand-blasted finish), metal button.
- Output contacts: NO (normally open), NC (normally closed) and COM (common).
- Door type suitability: Hollow door-frame doors with embedded electric box.
- Working temperature: –10 °C to +55 °C (14°F to 131°F).
- Working humidity: 0–95% RH (non-condensing).
- Aging test: Button passed over 500,000 actuations. Weight: Approx 0.2 kg (0.44 lb). :
Why Choose It in Dubai & GCC
- Provides a clean, slim exit button solution — ideal for villas, offices and retail spaces in UAE with narrow door-frames.
- Flexible contacts (NO/NC/COM) allow integration with a broad range of access-control systems used in Dubai and GCC.
- Solid aluminium construction suits high-traffic doorways and ensures longevity despite frequent use in regional commercial spaces.
- Rated for full UAE working environment — heat, air-conditioning cycles, humidity variations — making it reliable for Gulf installations.
- Supplied and installed by Netfix with UAE-warranty, commissioning and documentation — an end-to-end service for GCC clients.
Netfix supplies the Hikvision DS-K7P02 exit button across the UAE and GCC, with professional installation, wiring, configuration and testing. For a quote in Dubai, Sharjah or any other Emirate, contact Netfix.
