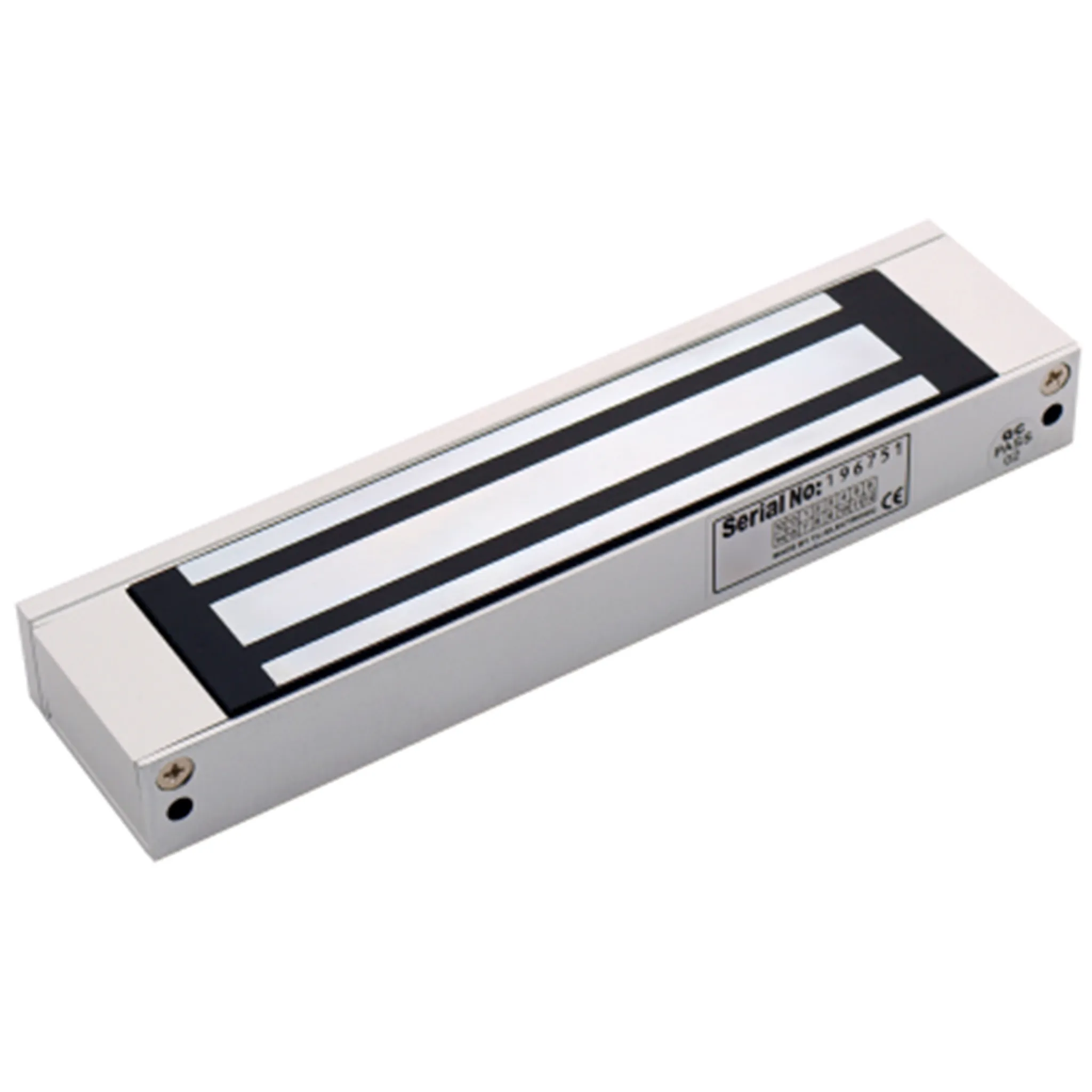

Hikvision DS-K4H250S — Single-Door Magnetic Lock

The Hikvision DS-K4H250S is a robust single-door magnetic lock designed for high-security access control applications across Dubai, UAE and the GCC. With up to 300 kg static linear thrust, selectable 12 VDC or 24 VDC power, door-status signal output and LED indication, it supports wooden, glass, metal and fire-proof doors—ideal for commercial buildings, offices and villas in the Gulf region. Netfix supplies genuine Hikvision access-control hardware and offers professional installation across the UAE.

Key Features & Benefits

Technical Specifications

• Model: DS-K4H250S (single-door magnetic lock)
• Maximum static linear thrust: 272 kg / 599.8 lb (some listings 300 kg)
• Input voltage: 12 VDC (500 mA) or 24 VDC (250 mA)
• Dimensions: Lock body 240 mm × 49 mm × 25.5 mm (9.45″ × 1.93″ × 1.00″) • Armature plate 180 mm × 38 mm × 11 mm (7.1″ × 1.5″ × 0.4″)
• Weight: 2.1 kg (4.63 lb) approx.
• Working temperature: –10 °C to +55 °C (14 °F to 131 °F) Working humidity: 0–95% RH (non-condensing) Indicator: Green = locked; Red = unlockedSignal output: Dry contact (NO/NC/COM), supports up to 3 A power rate
• Door types supported: Wooden, glass, metal, fire-proof doors single leaf or double leaf (90° opening)

Why Choose It in Dubai & GCC

• High locking force suitable for commercial entrances where higher security is needed (e.g., retail malls, office reception doors in Dubai).
• Selectable 12 V/24 V input makes the DS-K4H250S easier to integrate in UAE buildings with varied access-control systems.
• Signal output allows integration with local monitoring systems and building management dashboards in UAE/GCC.
• Compact design fits modern architectural styles common in UAE homes, hotels and corporate receptions.
• Durable materials and design meant to handle the environment in the Gulf (heat, dust, frequent access).
• Netfix provides supply, professional installation, configuration and support across Dubai, Sharjah, Abu Dhabi and other Emirates.

Netfix supplies and installs the Hikvision DS-K4H250S magnetic lock across the UAE and GCC with full warranty and professional setup service. For a site quote or deployment in Dubai or Sharjah, visit Netfix.
