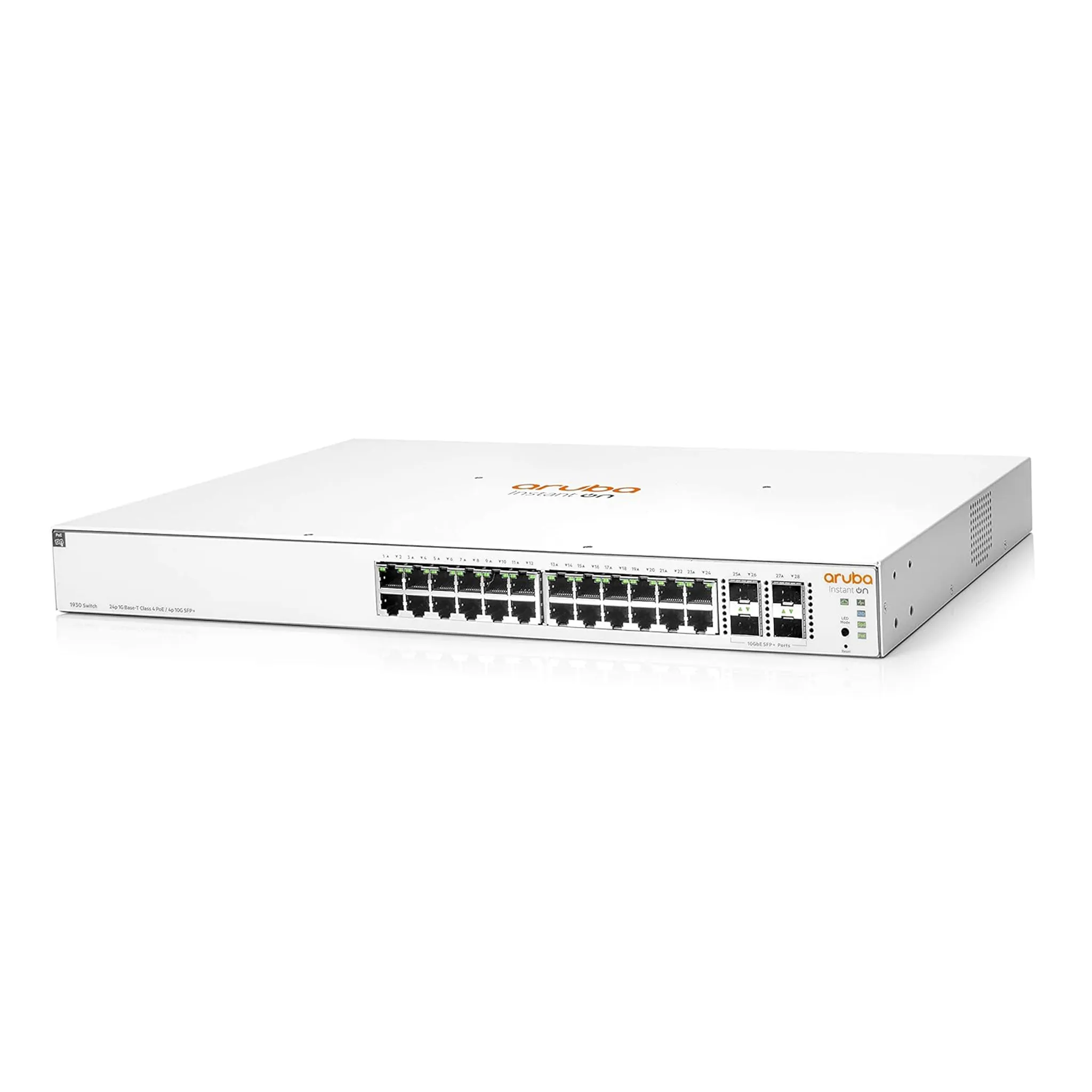

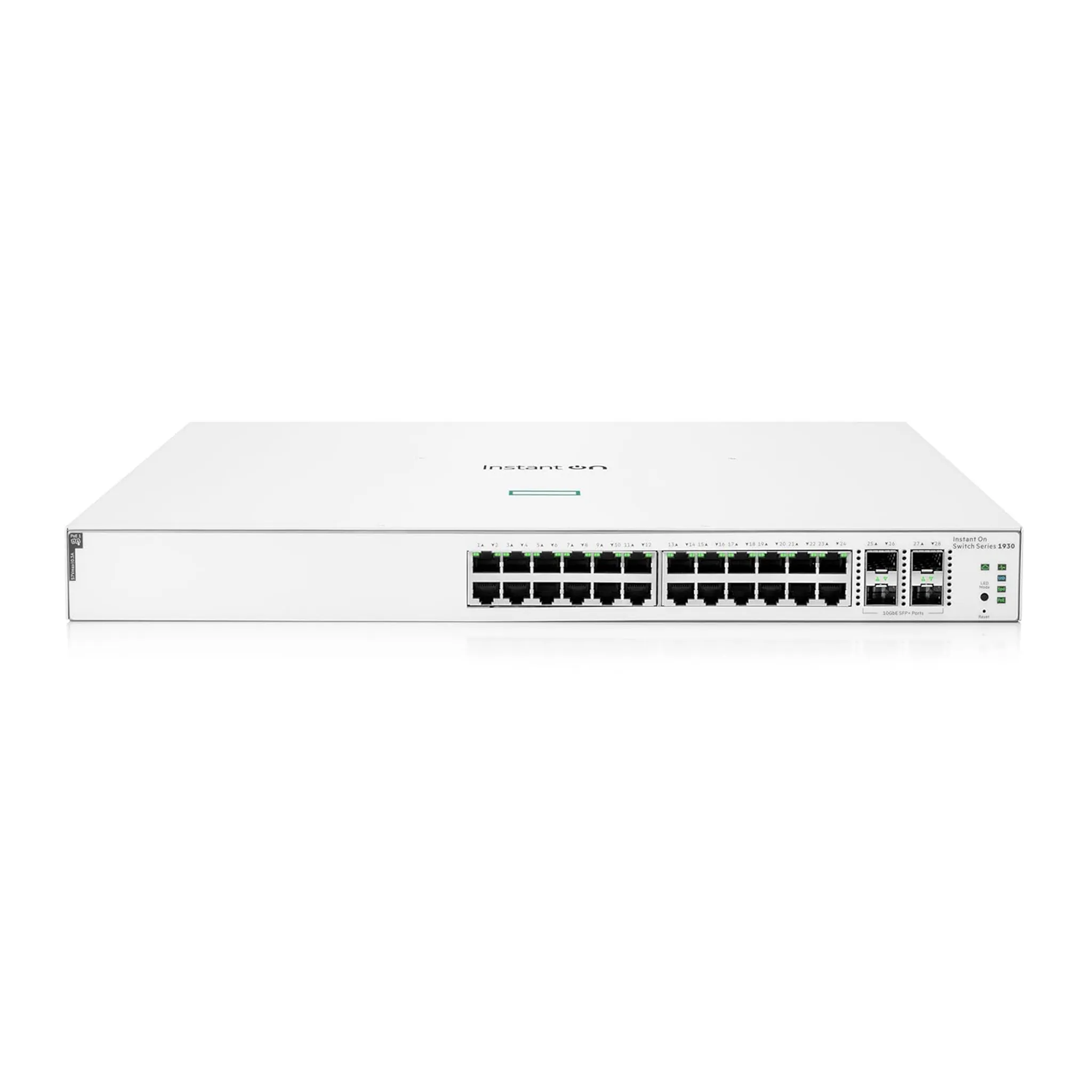

Aruba Instant On 1930 24G Class4 PoE Switch
Model JL683A

The Aruba Instant On 1930 24G Class4 PoE Switch (model JL683A) is a high-performance, smart-managed gigabit switch designed for business networks in Dubai, Sharjah and across the GCC. With 24 RJ-45 gigabit ports, full Class 4 PoE support (up to 30 W per port) and 4 dedicated SFP+/SFP fiber uplink slots (1/10 GbE), this switch is ideal for offices, retail outlets, VLAN-segmented systems, IP surveillance backbones, and IoT-device enabled environments. Netfix supplies and installs this Aruba switch throughout the UAE with full warranty and professional setup.

Key Features & Benefits

Technical Specifications

• Model: JL683A – Aruba Instant On 1930 24G Class4 PoE 4SFP+/SFP+ 195W
• Ports: 24 × 10/100/1000 RJ-45 (Class 4 PoE) + 4 × SFP+/SFP (1/10 GbE)
• PoE budget: Up to 195 W total for Class 4 802.3at/af devices {index=2}
• Switching capacity: 128 Gbps; forwarding throughput ~95.23 Mpps
• Processor & memory: ARM Cortex-A9 @ 800 MHz, 512 MB RAM, 256 MB Flash
• Dimensions: 44.25 × 26.47 × 4.39 cm (1U rack)
• Layer 2+ features: VLANs, link aggregation, static routing (IPv4), ACLs, 802.1X, QoS
• Management: Instant On mobile app + cloud/web portal + local Web UI
• Warranty: Limited lifetime warranty (24×7 phone support first 90 days)

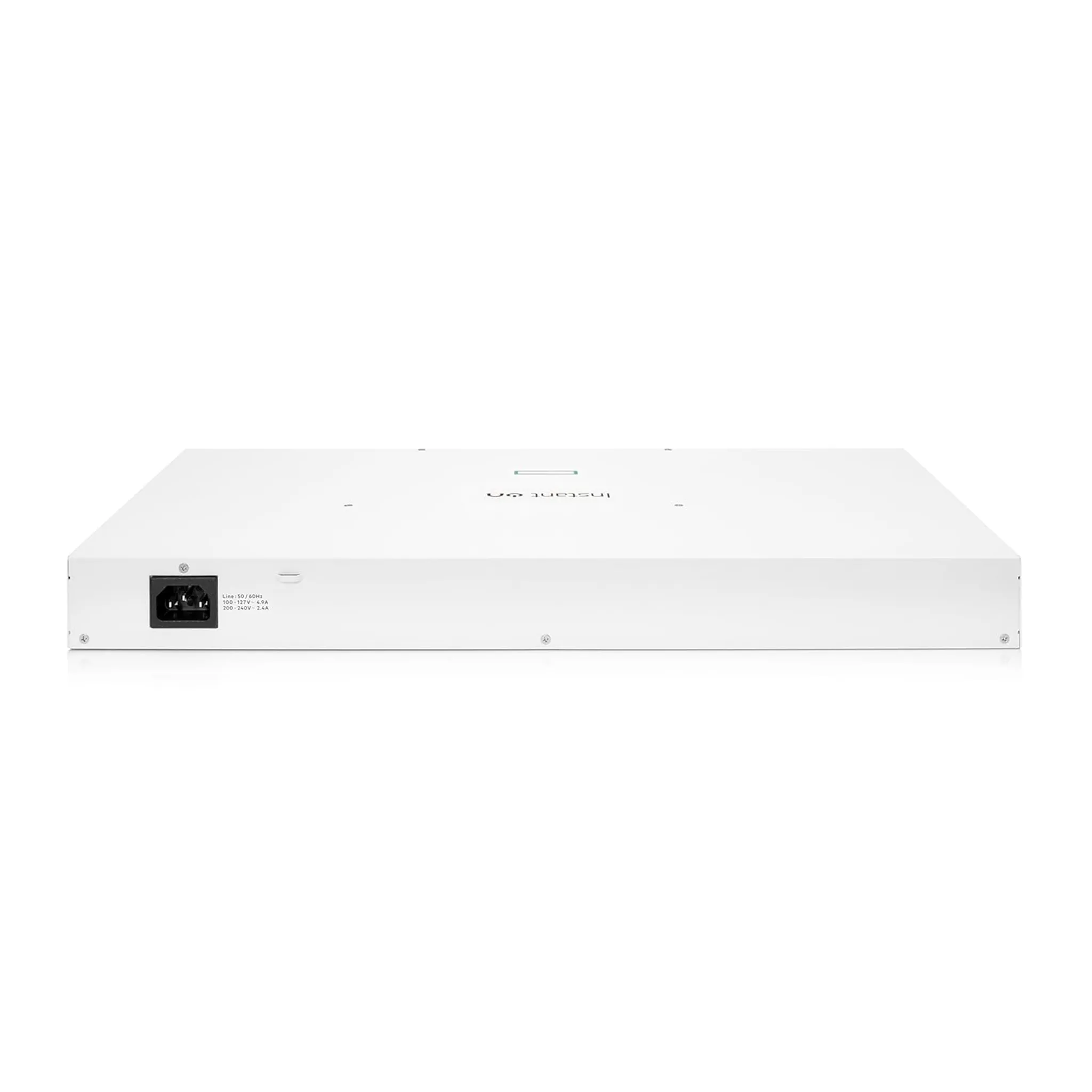

• Power: AC input 100-240 V; idle power consumption ~19.3 W (typical non-loaded)

Why Choose It in Dubai & GCC

• Power over Ethernet simplifies installation of WiFi 6 access points, IP cameras or VoIP phones in UAE commercial buildings.
• 24 Gigabit ports + 10G fiber uplinks ideal for busy offices, hospitality venues or campus sites in Dubai & Sharjah.
• Smart-managed features and Instant On mobile app help local resellers like Netfix deploy and monitor remotely across GCC.
• Class 4 PoE budget (195 W) supports dense PoE loads — suitable for surveillance, IoT, guest-WiFi deployments in Gulf region.
• Silent, efficient operation in air-conditioned Dubai office racks no fan noise.
• Aruba (HPE) brand, supported in Gulf region with authorised service and warranty via Netfix.

Netfix supplies the Aruba Instant On 1930 24G Class4 PoE Switch (JL683A) across UAE and GCC, with on-site installation, configuration and warranty support. For competitive pricing in Dubai, Sharjah or Abu Dhabi, contact Netfix.
